Output to File
Products > PC- Convey > Guided Tour

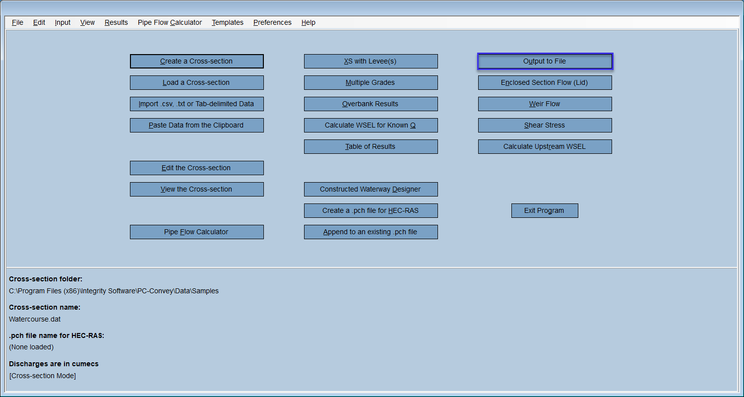

The Output to File option enables you to save the Overbank Results and the Table of Results output as text files that can be read into a spreadsheet program and manipulated as required to produce rating tables, graphs etc. As these 2 files produce a significant amount of data, another file contains just the Water Surface Elevation and the Discharge, Average Velocity and Area for the total cross-section.
This screenshot shows a small portion of the Overbank Output file after it has been imported into Excel. For a list of all of the variables available, click here.
This screenshot shows the simplest form of the output (WSEL, Q, VAve, Area) imported into Excel:
The third file contains all of the Table of Results variables.
