Import .csv tab data

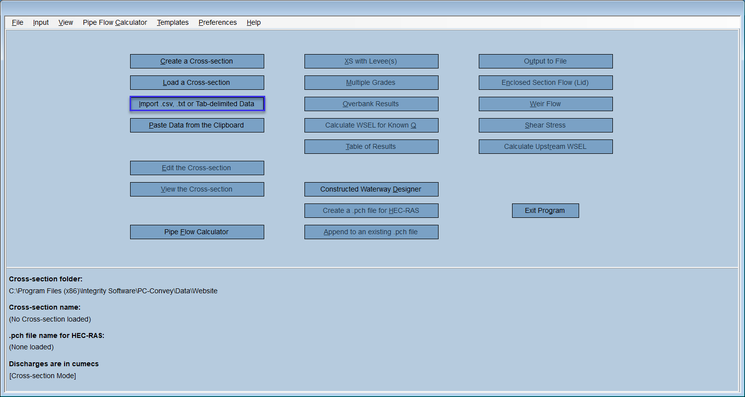

This feature makes it simple to import .csv (comma separated variable) data as well as data in a .txt file and tab delimited data:

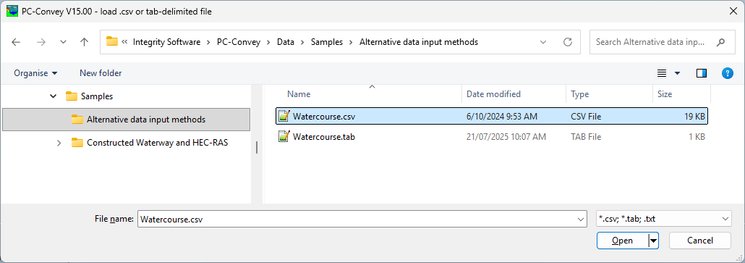

Locate the file you want to import and select Open:

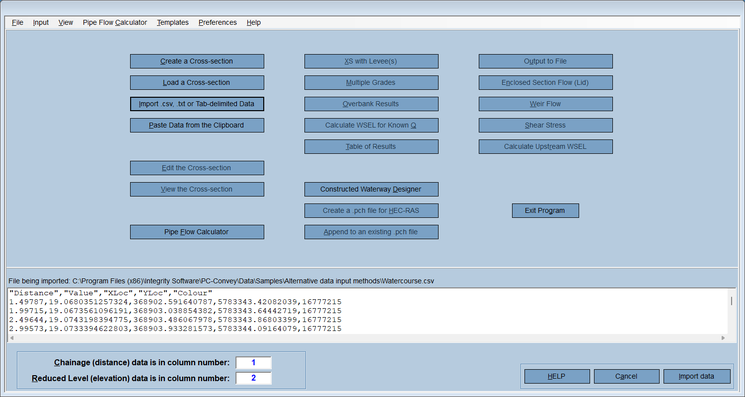

Specify which columns the Chainage and Elevation data is in:

Click on Import data:

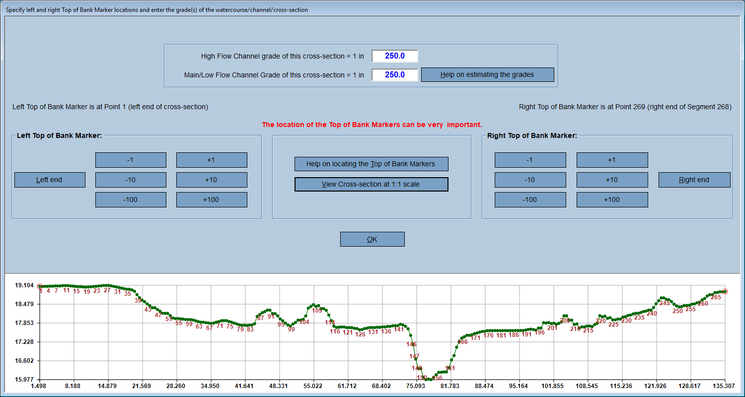

After clicking on "OK - Load file" you will be prompted to enter other data such as cross-section grade, discharge information and Manning's n value(s).
